Hot sale package testing machine YYP-5024 Vibration Testing Machine through layers of technical parameters screening, product quality fully meet the requirements of bidding, and local dealers after-sales service clamp, our company finally won the order, successful delivery today!

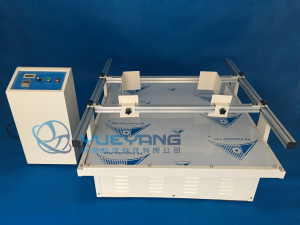

YYP-5024 Vibration Testing Machine technical parameters and characteristics:
1. Digital instrument displays vibration frequency
2. Synchronous quiet belt drive, very low noise
3. The sample clamp adopts guide rail type, easy to operate and safe
4. The base of the machine adopts heavy channel steel with vibration damping rubber pad, which is easy to install and smooth to run without installing anchor screws
5. Dc motor speed regulation, smooth operation, strong load capacity
6. Rotary vibration (commonly known as horse type), in line with European and American transportation standards
7. Vibration mode: rotary (running horse)
8. Vibration frequency :100~300rpm
9. Maximum load: 100kg
10. Amplitude: 25.4mm(1 ")
11. Effective working surface size :1200x1000mm
12. Motor power :1HP (0.75kw)
13. Overall size :1200×1000×650 (mm)
14. Timer: 0~99H99m
15. Machine weight :100kg
16. Display frequency accuracy: 1rpm
17. Power supply: AC220V 10A
Post time: Mar-18-2025
