YY-1000B Thermal Gravimetric Analyzer(TGA)

Features:

1. Industrial level widescreen touch structure is rich in information, including setting temperature, sample temperature, etc.
2. Use the gigabit network line communication interface, the universality is strong, the communication is reliable without interruption, supports the self-recovery connection function.
3. The furnace body is compact, temperature rise and fall speed adjustable.
4. Water bath and heat insulation system, insulation high temperature furnace body temperature on the weight of the balance.
5. Improved installation process, all adopt mechanical fixation; the sample support rod can be replaced flexibly and crucible can be matched with various models according to the requirements, so that users can have different requirements.
6. The flow meter automatically switches two gas flows, fast switching speed and short stable time.
7. Standard samples and charts are provided to facilitate customer calibration of constant temperature coefficient.
8. Software support each resolution screen, automatically adjust the computer screen size curve display mode. Support laptop, desktop; Support WIN7, WIN10, win11.
9. Support user edit device operation mode according to actual needs to achieve full automation of measurement steps. The software provides dozens of instructions, and users can flexibly combine and save each instruction according to their own measurement steps. Complex operations are reduced to one-click operations.
10. One-piece fixed furnace body structure, without lifting up and down, convenient and safe, the rate of rising and falling can be adjusted arbitrarily.
11. The removable sample holder can meet different requirements after replacement to facilitate cleaning and maintenance after sample contamination.
12. The equipment adopts the cup-type balance weighing system according to the principle of electromagnetic balance.

Parameters:

1. Temperature range: RT~1000℃
2. Temperature resolution: 0.01℃
3. Heating rate: 0.1～80℃/min
4. Cooling rate: 0.1℃/min-30℃/min（When more than 100℃, can lower the temperature at a cooling rate）
5. Temperature control mode: PID temperature control
6. Balance weighing range:2g (not the weight range of the sample)
7. Weight resolution: 0.01mg
8. Gas control：Nitrogen, Oxygen (automatic switching)
9. Power: 1000W, AC220V 50Hz or customize other standard power sources
10. Communication methods: Gigabit gateway communications
11. Standard crucible size(High * diameter) : 10mm*φ6mm。
12. Replaceable support, convenient for disassembly and cleaning, and can be replaced with crucible of different specifications
13. Machine size: 70cm*44cm*42 cm, 50kg (82*58*66cm, 70kg, with the outer packing).

Configuration list:

1. Thermogravimetric analysis –       1set

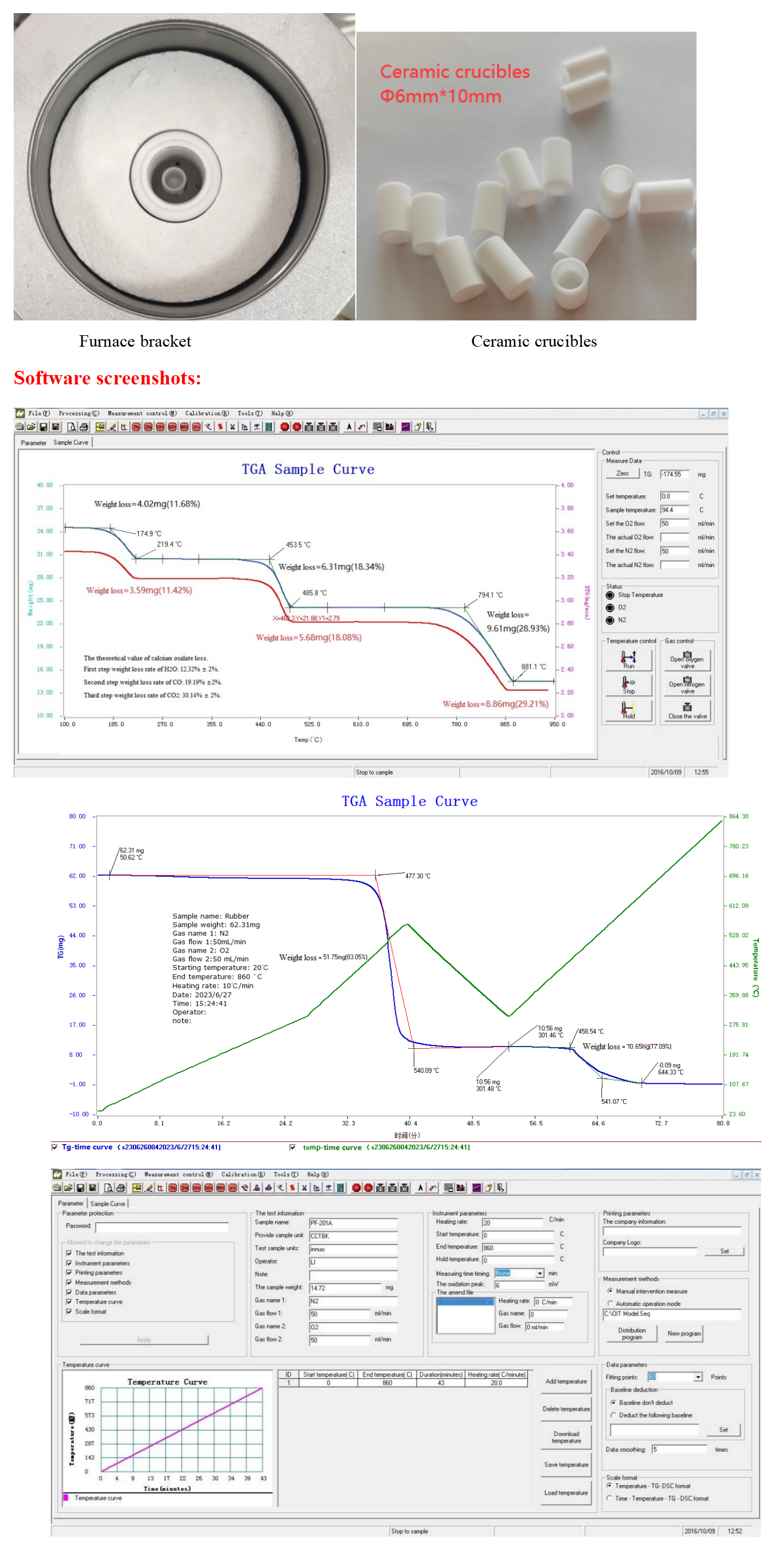

2. Ceramic crucibles（Φ6mm*10mm）– 50pcs
3. Power cords and a Ethernet cable  —    1set
4. CD (contains software and operations video) — 1pcs
5. Software-key  —-                   1pcs
6. Oxygen tube, nitrogen airway tube and exhaust tube—each 5meter
7. Operation manual   —    1pcs
8. Standard sample—（contains 1g CaC₂O₄·H₂O and 1g CuSO₄）
9. Tweezer 1pcs, screwdriver1pcs  and  medicine spoons 1pcs
10. Custom pressure reducing valve joint and quick joint   2pcs
11. Fuse—   4pcs
