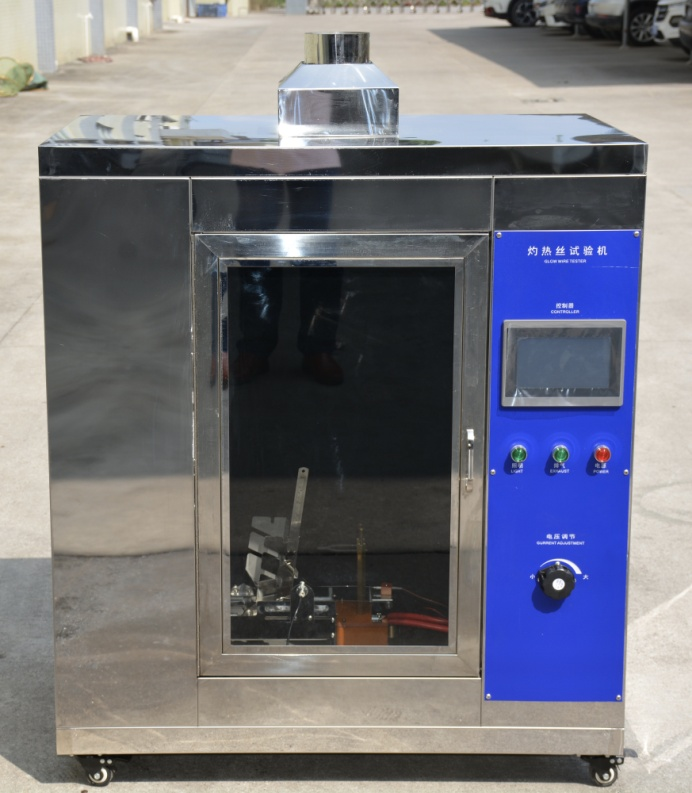

YY-ZR101 Glow Wire Tester

Short Description:

I. Equipment name: Glow Wire Tester

II.Equipment model:YY-ZR101

III.Equipment Introductions:

The glow wire tester will heat the specified material (Ni80/Cr20) and shape of the electric heating wire (Φ4mm nickel-chromium wire) with high current to the test temperature (550℃ ~ 960℃) for 1min, and then vertically burn the test product for 30s at the specified pressure (1.0N). Determine the fire risk of electrical and electronic equipment products according to whether the test products and bedding are ignited or held for a long time; Determine the ignitability, ignitability temperature (GWIT), flammability and flammability index (GWFI) of solid insulating materials and other solid combustible materials. The glow-wire tester is suitable for the research, production and quality inspection departments of lighting equipment, low-voltage electrical appliances, electrical instruments, and other electrical and electronic products and their components.

IV.Technical parameters:

1. Hot wire temperature: 500 ~ 1000℃ adjustable

2. Temperature tolerance: 500 ~ 750℃ ±10℃, > 750 ~ 1000℃ ±15℃

3. Temperature measuring instrument accuracy ±0.5

4. Scorching time: 0-99 minutes and 99 seconds adjustable (generally selected as 30s)

5. Ignition time: 0-99 minutes and 99 seconds, manual pause

6. Extinguish time: 0-99 minutes and 99 seconds, manual pause

Seven. Thermocouple: Φ0.5/Φ1.0mm Type K armored thermocouple (not guaranteed)

8. Glowing wire: Φ4 mm nickel-chromium wire

9. The hot wire applies pressure to the sample: 0.8-1.2N

10. Stamping depth: 7mm±0.5mm

11. Reference standard: GB/T5169.10, GB4706.1, IEC60695, UL746A
