Technical Parameters:
Index |
Parameter |
Vacuum
|
0~-90 Kpa |
Response speed |
<5 ms
|
Resolution
|
0.01 Kpa
|
Sensor precision
|
≤0.5 grade
|
Built-in mode
|
Single point mode, increment mode |

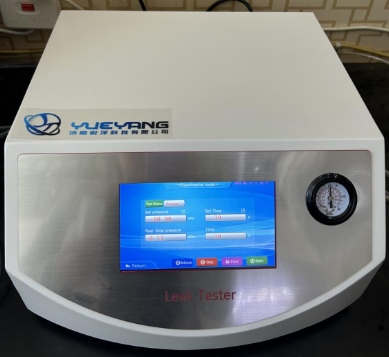

Screen
|
7-inch touch screen
|
Pressure regulation range
|
0.2-0.7 Mpa
|
Interface size
|
Φ6
|
Pressure holding time
|
0-999999 s
|
Vacuum chamber (other size customized) |
Φ270 mmx210 mm (H) , Φ360 mmx585mm (H) , Φ460 mmx330mm (H)
|
Equipment size |
420(L)X 300(W)X 165(H)mm
|

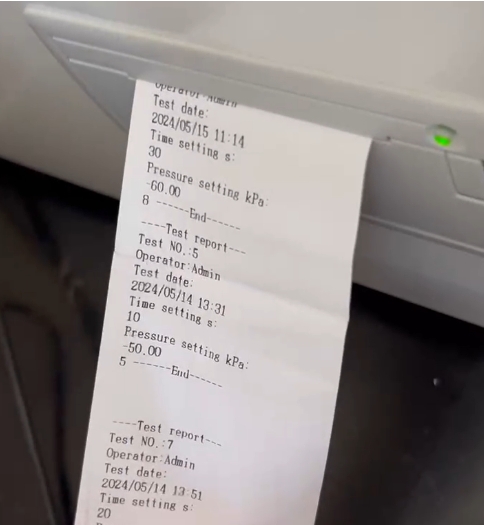

Printer(optional)
|
Needle type
|
Air source
|
Compressed air (supplied by user)
|
